FNS® PLUS FILTERS (Pentair)

Product & Supplies » Pentair Product Catalog 2010 » Filters » D. E. Filters
Audio Accounts Products Images

FNS® PLUS FILTERS

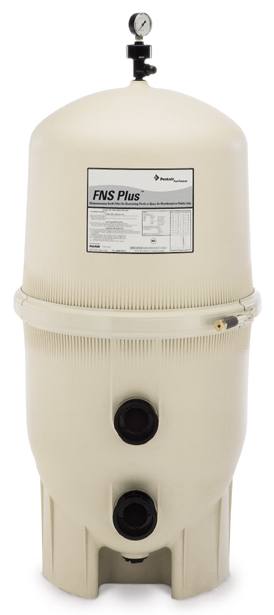

Click here to view full image.
This product is part of
Pentair Product Catalog 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend
The filter that delivers crystal clarity.


FNS® Plus Filters feature the same, superior curved grid design as the FNS®, but with a fiberglass reinforced polypropylene body for advanced chemical resistance and superior strength.
  • Tension Control™ clamp
  • High Flow manual air relief valve
  • Black valves and plumbing
  • 7-1/2in. centerline bulkhead fittings
  • 1-1/2in. bottom clean out port
  • Service-Ease™ grid pack
  • Superior strength
  • Continuous High Flow™ internal air relief
  • Top-to-bottom backwash
  • 100% factory tested
Optimal Performance at this GPM (FNSP36, FNSP48, FNSP60): NSF Listed.


Flow Rated at .375 - 1 GPM (per sq ft): Flow rate is based on 2 GPM per sq. ft. of filter area. Actual system flow will depend on plumbing size and other system components.


Accessories: Valves must be purchased separately.
Product Information
Name:FNS® PLUS FILTERS
Manufacturer:Pentair
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(978) 251-1850
Fax:(978) 251-1851
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:FNS® PLUS FILTERS
Manufacturer:Pentair
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Product Options

FNS PLUS FILTERS (FNS® PLUS FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: 180006
FILTER AREA (SQ FT): FNSP24, OPTIMAL PERFORMANCE AT THIS GPM: 24, FLOW RATED AT .375 - 1 GPM (PER SQ FT): 48, TURNOVER CAPACITY (IN GALLONS) 8 HOUR: 23040, TURNOVER CAPACITY (IN GALLONS) 10 HOUR: 28800, TURNOVER CAPACITY (IN GALLONS) 12 HOUR: 34560, D.E. REQUIRED (LBS): 2.4		 Request a Quote

Part#: 180007
FILTER AREA (SQ FT): FNSP36, OPTIMAL PERFORMANCE AT THIS GPM: 36, FLOW RATED AT .375 - 1 GPM (PER SQ FT): 72, TURNOVER CAPACITY (IN GALLONS) 8 HOUR: 34560, TURNOVER CAPACITY (IN GALLONS) 10 HOUR: 43200, TURNOVER CAPACITY (IN GALLONS) 12 HOUR: 51840, D.E. REQUIRED (LBS): 3.6		 Request a Quote

Part#: 180008
FILTER AREA (SQ FT): FNSP48, OPTIMAL PERFORMANCE AT THIS GPM: 48, FLOW RATED AT .375 - 1 GPM (PER SQ FT): 96, TURNOVER CAPACITY (IN GALLONS) 8 HOUR: 46080, TURNOVER CAPACITY (IN GALLONS) 10 HOUR: 57600, TURNOVER CAPACITY (IN GALLONS) 12 HOUR: 69120, D.E. REQUIRED (LBS): 4.8		 Request a Quote

Part#: 180009
FILTER AREA (SQ FT): FNSP60, OPTIMAL PERFORMANCE AT THIS GPM: 60, FLOW RATED AT .375 - 1 GPM (PER SQ FT): 120, TURNOVER CAPACITY (IN GALLONS) 8 HOUR: 57600, TURNOVER CAPACITY (IN GALLONS) 10 HOUR: 72000, TURNOVER CAPACITY (IN GALLONS) 12 HOUR: 86400, D.E. REQUIRED (LBS): 6		 Request a Quote


ACCESSORIES (FNS® PLUS FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: 261049
2 in. HiFlow valve, no plumbing (valves must be purchased separately)		 Request a Quote

Part#: 261047
2 in. PVC Slide valve w/o plumbing, for D.E. & sand filters (valves must be purchased separately)		 Request a Quote

Part#: 261142
2 in. HiFlow valve with plumbing for D.E. filters (valves must be purchased separately)		 Request a Quote

Part#: 261152
2 in. MPV, threaded for D.E. filters (valves must be purchased separately)		 Request a Quote

Part#: 261165
2 in. PVC Slide valve for D.E. filters & sand filters (valves must be purchased separately)		 Request a Quote

Part#: 261177
1-1/2in. MPV, threaded for D.E. filters (valves must be purchased separately)		 Request a Quote

Part#: 263034
2 in. ABS Slide valve (valves must be purchased separately)		 Request a Quote
